1.10 Motion Detection

A PIR (Passive Infrared) sensor is like an electronic “heat vision” detector! It doesn’t emit anything - instead, it “watches” for changes in infrared heat patterns. When a warm object (like a person or pet) moves through its field of view, it detects the heat signature change and triggers an alert.

You’ll find PIR sensors in automatic lights, security systems, and smart home devices. They’re perfect for detecting “something moved” rather than “something is there.”

Component List

• Raspberry Pi Pico W x1

• MicroUSB cable x1

• 830 Tie-Points Breadboard x1

• Jumper Wire Several

• PIR Motion Sensor Module x1

Component knowledge

PIR Motion Sensor Module

How motion detection works: - No movement: PIR sees steady heat pattern → GP14 reads LOW (0V) - Motion detected: PIR detects heat change → GP14 reads HIGH (3.3V)

The PIR module has built-in processing - it only triggers when it detects a change in heat patterns, not just the presence of warm objects.

Note

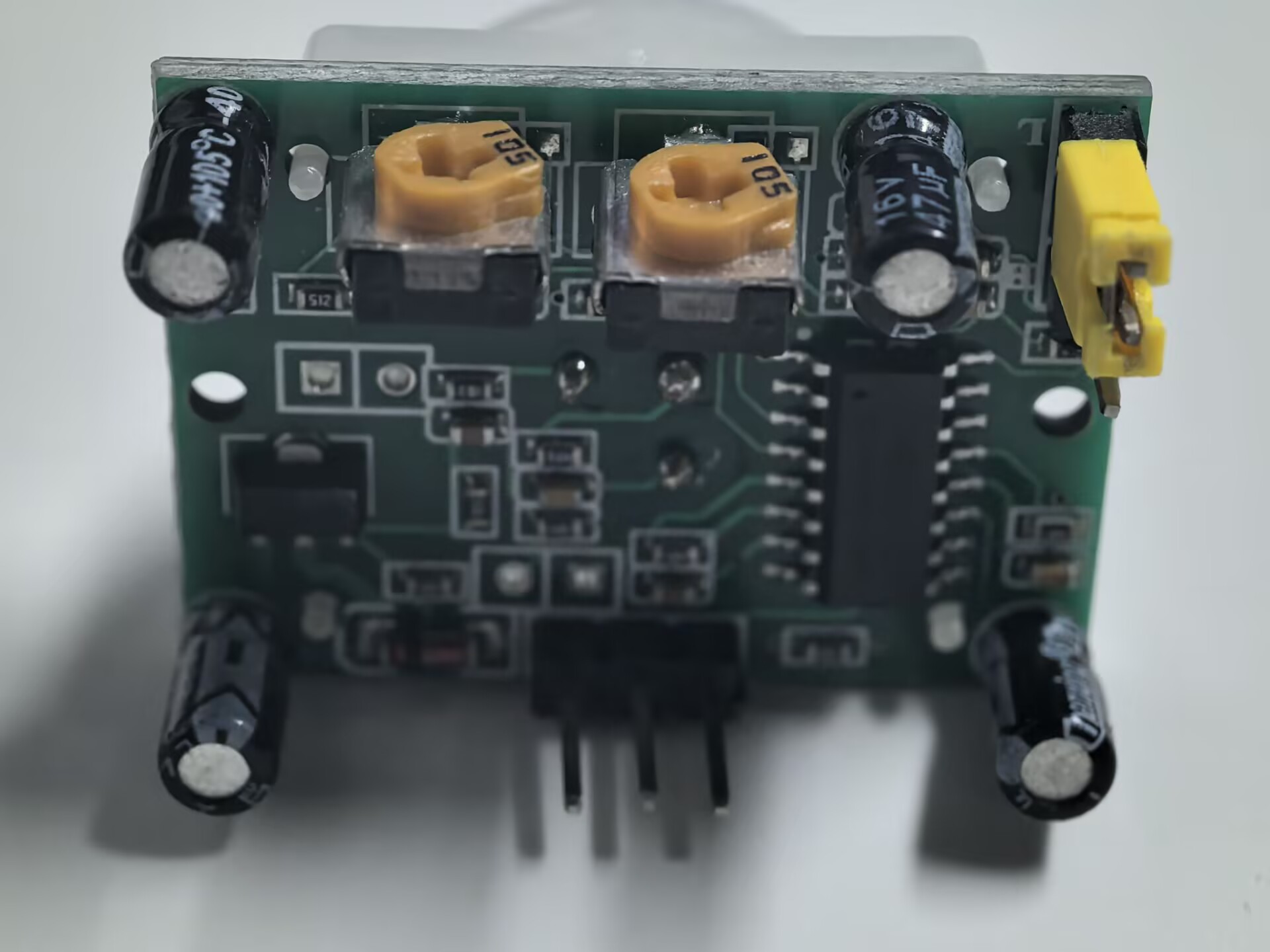

The PIR module has two potentiometers: one adjusts sensitivity, the other adjusts detection distance. To make the PIR module work better, you need to turn both of them counterclockwise to the end.

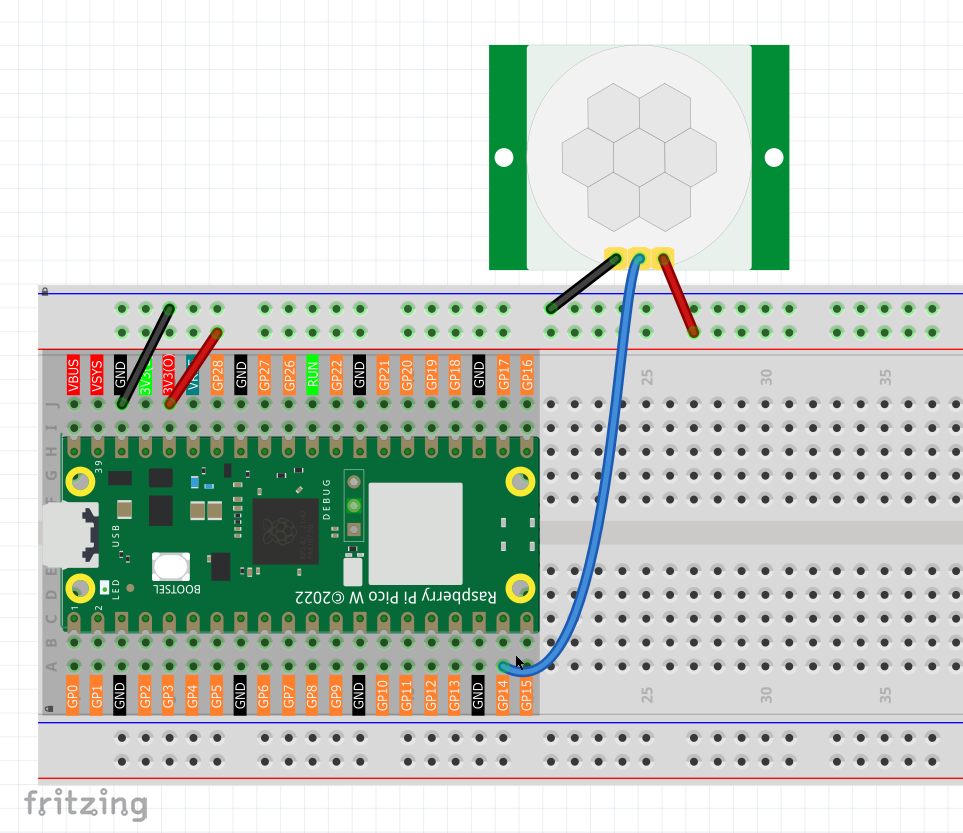

Connect

Code

Note

• Open the 1.10_motion_detection.ino file under the path of Ultimate-Starter-Kit-for-Pico-W\Arduino\1.Project or copy this code into Thonny, then click “Run Current Script” or simply press F5 to run it.

• Or copy this code into Arduino IDE.

• Don’t forget to select the board(Raspberry Pi Pico) and the correct port before clicking the Upload button.

After running the code, wave your hand or walk in front of the PIR sensor. You’ll see “MOTION DETECTED!” alerts with detection counters, timestamps, and status updates. The system will also tell you when motion stops and the area is clear again.

The following is the program code:

/*
  Motion Detection Alert System

  Uses a PIR sensor to detect motion and provides
  alert messages with detection counting.
*/

// Pin definition and constants
const int PIR_SENSOR_PIN = 14;      // PIR sensor connected to pin 14
const int DETECTION_DELAY = 200;    // delay between readings in milliseconds

// Variables for motion tracking
bool motionDetected = false;        // current motion state
bool lastMotionState = false;       // previous state for change detection
int detectionCount = 0;             // total number of detections
unsigned long lastDetectionTime = 0; // timestamp of last detection

void setup() {
  // Configure PIR sensor pin as input
  pinMode(PIR_SENSOR_PIN, INPUT);

  // Initialize serial communication
  Serial.begin(115200);

  // Display system startup message
  showStartupMessage();
}

void loop() {
  // Check for motion detection
  checkMotionSensor();

  // Wait before next reading
  delay(DETECTION_DELAY);
}

// Function to display startup information
void showStartupMessage() {
  Serial.println("=== Motion Detection System ===");
  Serial.println("PIR sensor monitoring active");
  Serial.println("Waiting for motion...");
  Serial.println("==============================");
  Serial.println();
}

// Function to monitor PIR sensor and detect motion changes
void checkMotionSensor() {
  // Read current PIR sensor state
  motionDetected = digitalRead(PIR_SENSOR_PIN);

  // Check if motion was just detected (state change from no motion to motion)
  if (motionDetected && !lastMotionState) {
    // Record detection time and increment counter
    lastDetectionTime = millis();
    detectionCount++;

    // Trigger motion alert
    triggerMotionAlert();
  }

  // Check if motion stopped (state change from motion to no motion)
  if (!motionDetected && lastMotionState) {
    Serial.println("Motion stopped - area clear");
    Serial.println();
  }

  // Update last state for next comparison
  lastMotionState = motionDetected;
}

// Function to handle motion detection alert
void triggerMotionAlert() {
  Serial.println(">>> MOTION DETECTED! <<<");
  Serial.println("Alert: Movement in monitored area");

  // Show detection statistics
  Serial.print("Detection #");
  Serial.println(detectionCount);

  Serial.print("Time: ");
  Serial.print(lastDetectionTime);
  Serial.println(" ms");

  Serial.println("Status: ACTIVE");
  Serial.println();
}

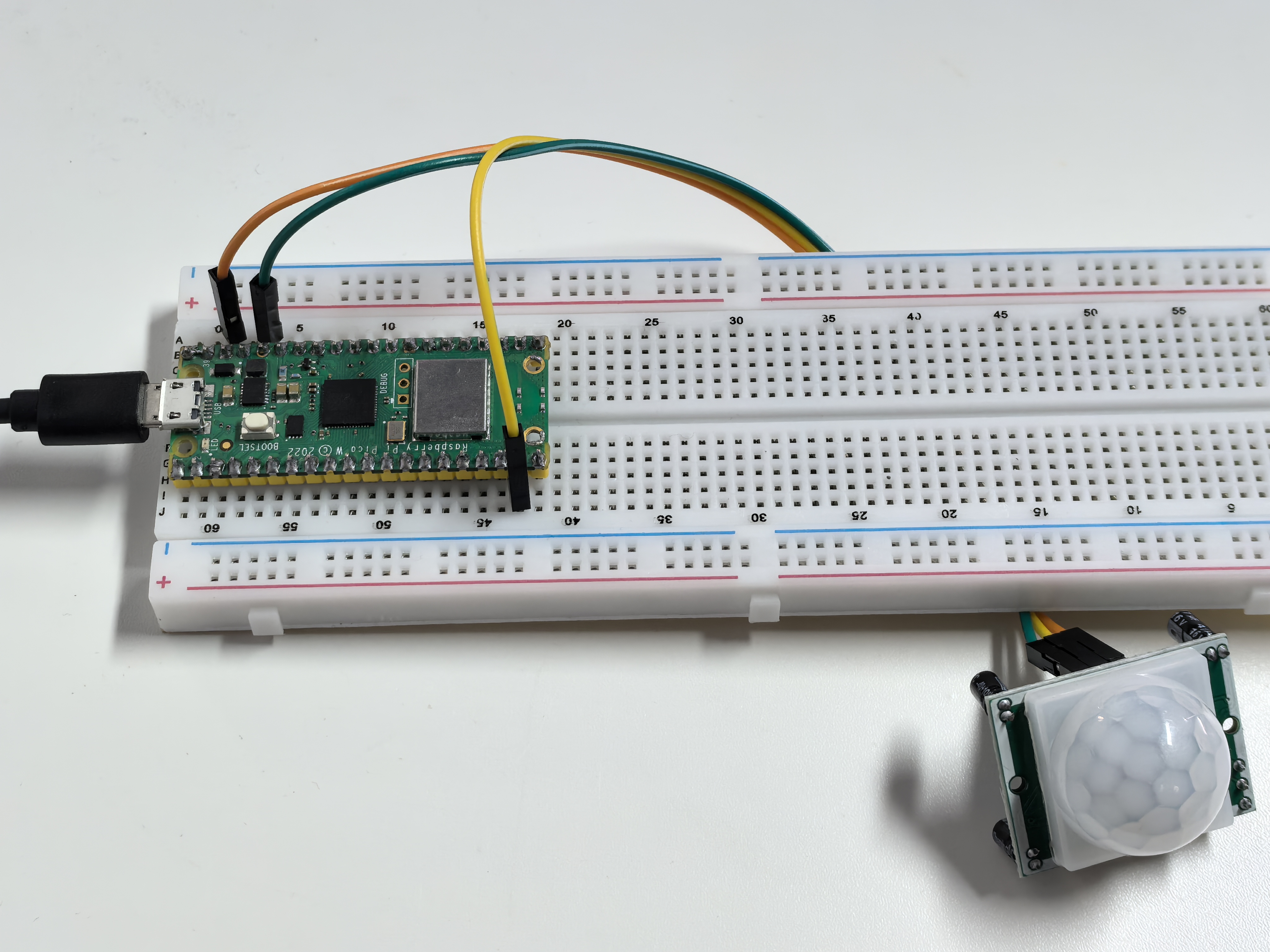

Phenomenon
